Techik Checkweigher IMD-IXL Series
Product Description

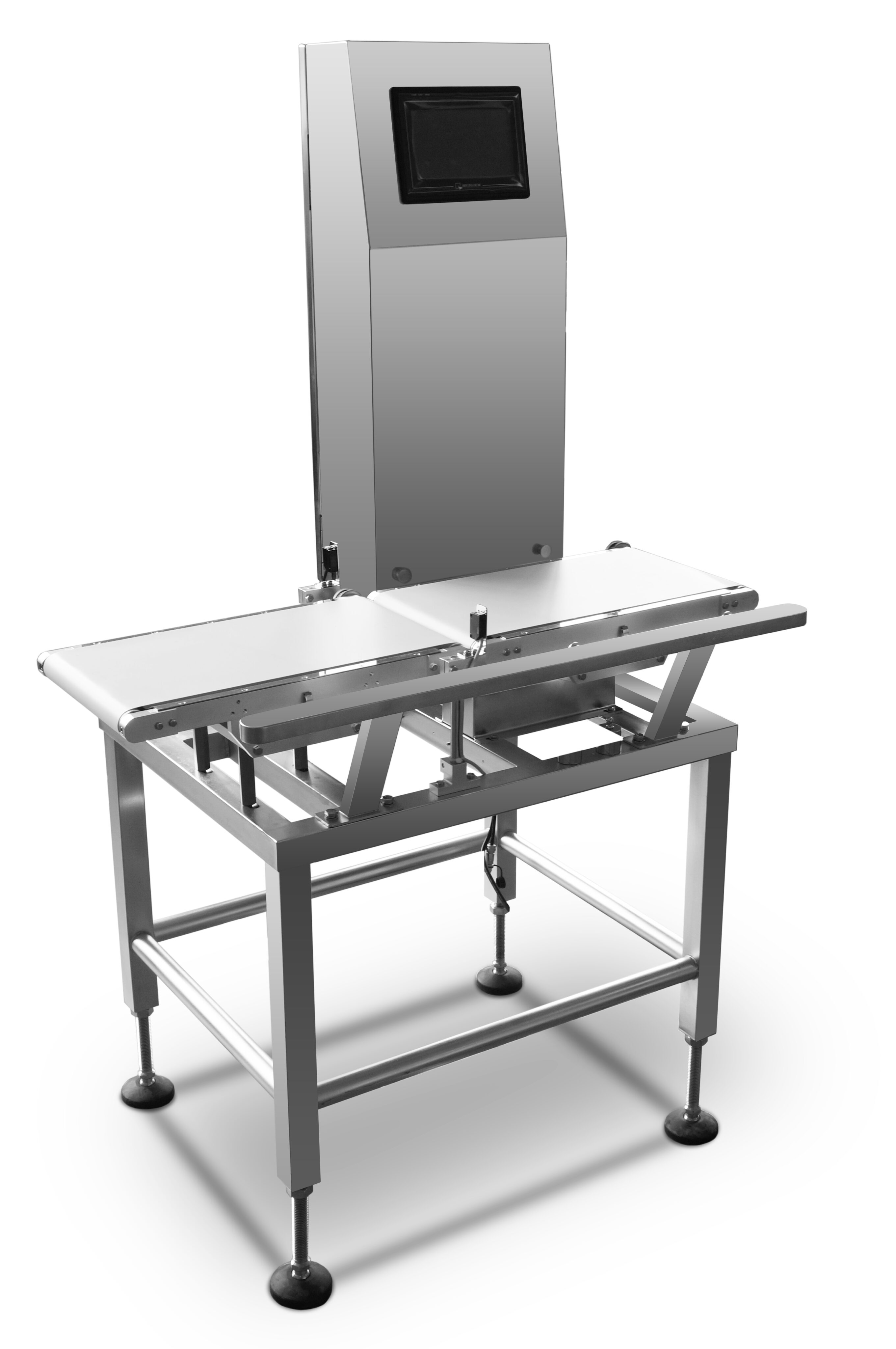

Check weigher IMD-IXL Series
- High speed, high sensitivity, high stability dynamic weight checking
- Accurate and efficient reject system
- Professional HMI design
- User-friendly features
- Professional mechanical design
- Good environmental adaptability and stability
- Easy user parameter setting
Specifications
| Model | IXL-160 | IXL-230S | IXL-230L | IXL-300 | IXL-400 | |
| Detecting Range | 10~600g | 20~2000g | 20~2000g | 20~5000g | 0.2~10kg | |
| Scale Interval | 0.05g | 0.1g | 0.1g | 0.2g | 1g | |
| Accuracy(Зσ) | ±0.1g | ±0.2g | ±0.2g | ±0.5g | ±1g | |
| Detecting Speed(Max speed) | 250pcs/min | 200pcs/min | 155pcs/min | 140pcs/min | 105pcs/min | |
| Belt Speed | 70m/min | 70m/min | 70m/min | 70m/min | 70m/min | |
| The weighed product size | Width | 150mm | 220mm | 220mm | 290mm | 390mm |
| Length | 200mm | 250mm | 350mm | 400mm | 500mm | |
| Weigher platform size | Width | 160mm | 230mm | 230mm | 300mm | 400mm |
| Length | 280mm | 350mm | 450mm | 500mm | 650mm | |
| Operation Screen | 7-inch Touch LCD Screen | |||||
| Product Storage Quantity | 100 Recipes | |||||
| Segments Number of Sorting | 2 or 3 | |||||
| Rejecter | Rejecter Optional | |||||
| Power Supply | 220V (Optional) | |||||
| Degree of Protection | IP30/IP54/IP66 | |||||
| Body Material | Stainless Steel (SUS304) | |||||
Note:
- The Specifications listed above are based on a test sample. The accuracy would be affected according to the detecting speed and product weight.
- The detecting speed above will be affected according to the specific product size and weight.
