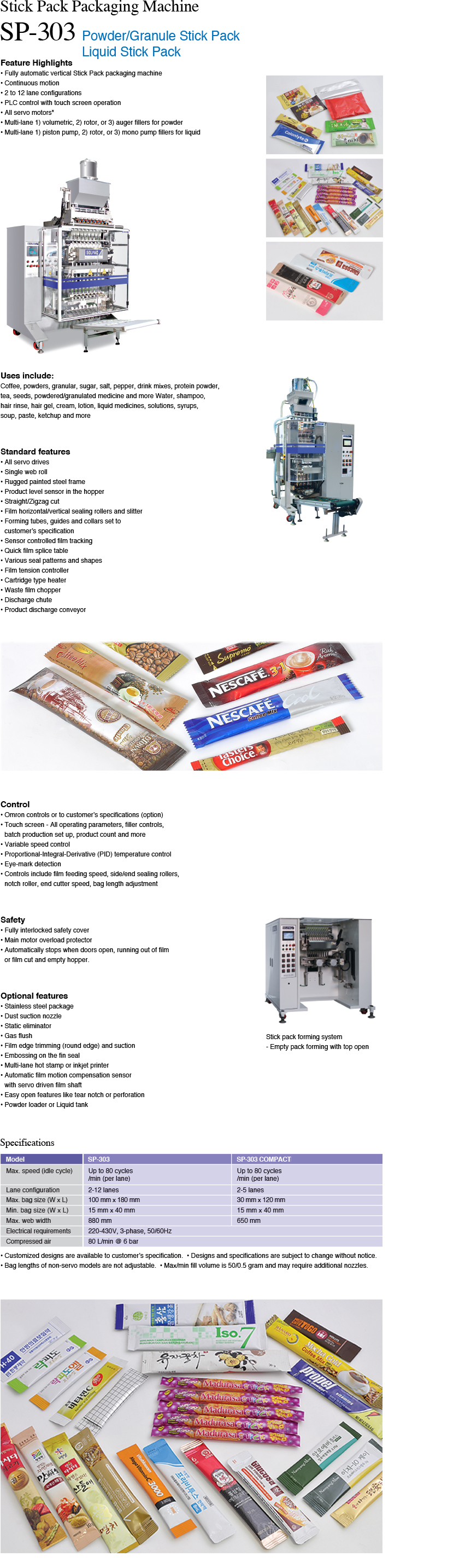

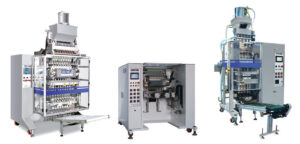

Solpac SP-303 Stickpack – Powders & Liquids

Product Description

Standard features

• All servo drives
• Single web roll
• Rugged painted steel frame
• Product level sensor in the hopper
• Straight/Zigzag cut
• Film horizontal/vertical sealing rollers and slitter
• Forming tubes, guides and collars set to

Customer’s specifications

• Sensor controlled film tracking
• Quick film splice table
• Various seal patterns and shapes
• Film tension controller
• Cartridge type heater
• Waste film chopper
• Discharge chute
• Product discharge conveyor

 Optional features

• Stainless steel package
• Dust suction nozzle
• Static eliminator
• Gas flush
• Film edge trimming (round edge) and suction
• Embossing on the fin seal
• Multi-lane hot stamp or inkjet printer
• Automatic film motion compensation sensor with servo driven film shaft
• Easy open features like tear notch or perforation
• Powder loader or Liquid tank Control
• Omron controls or to customer’s specifications (option)
• Touch screen – All operating parameters, filler controls, batch production set up, product count and more
• Variable speed control
• Proportional-Integral-Derivative (PID) temperature control
• Eye-mark detection
• Controls include film feeding speed, side/end sealing rollers, notch roller, end cutter speed, bag length adjustment Safety
• Fully interlocked safety cover
• Main motor overload protector
• Automatically stops when doors open, running out of film or film cut and empty hopper.
• Customized designs are available to customer’s specification. • Designs and specifications are subject to change without notice.
• Bag lengths of non-servo models are not adjustable. • Max/min fill volume is 50/0.5 gram and may require additional nozzles. Stick pack forming system
