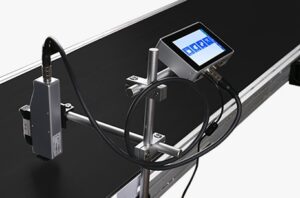

Elfin IS
Product Description
- Easy to use 5 inch 800*480 colour LCD touch screen.
- Various formats available including 1D/2D bar-codes, batch codes, counters, logos, dates etc.
- Up to 48 programmable user groups.
- Vector font editor with multiple fonts supported.
- Smart detection of external devices.
- Easy to mount independent print-head.
Features
| Selectable Languages | Chinese, English, Japanese, French, German, Spanish, Portuguese and Russian; |
| Fonts | Default font is Arial, allows users to load the fonts they need; |
| Barcodes | UPCA, UPCE, EAN13, EAN8, INT25, CODE39, CODE128, ENA 128, PDF417, DATAMATRIX, QR; (Allows user to add the barcode) |
| Date format | Variety of date modes available (Production Date, Use by Date, Expiration Date, etc); |
| Counters | Flexible setting for serial number, Lot-Box code counters; |
| Print Speed | Print speed can be set, auto-measuring or using external synchronizer; |
Technical Parameters
| Technology | TIJ2.5 |
| Dimensions | Controller: H*W*D: 151*93*32mm/ 5.9*3.7*1.3inch Printhead: H*W*D: 175*52*33mm/6.9*2.0*1.3inch |
| Power Supply | AC 100V-240V 50-60HZ, 30W (Specified AC adaptor) |
| Printable Heights | 1~12.7mm |
| Printing speed | 0-60m/min (300 DPI); |
| Resolution | 50~600DPI |
| Port | 1) Ethernet: Support PC software communication protocol/SDK 2) USB2.0: Support U-Disk 3) DB15: For external devices like photocell, synchronizer or alarm kit connection |
| Printing Objects | Barcodes, Character, Numeric, Logos, Date/Time, Expiry Date, Shift Code, Counter, Lot-Box Code; |
| Interface | 1) 5inch 800*480 color LCD touch screen; 2) Display using brand new touch interface; |
| Ink management | 1) Automatically recognize the ink types, and identify the optimum printing parameters; 2) Guarantee of using genuine original HP ink; 3) Automatic measuring system for the usage of the ink; |
| Mounting | Standard side, downside and anti-shock printing bracket; |
| Product Certification | CE、FCC |
| Environment | 1) Working Environment: -10°– +45°C; 10%-85%RH; 2) Storage Environment: -25°– +55°C; 10%-90%RH; |
Ink Solutions
- Support 42ml, 370ml and 350ml cartridges of HP TIJ2.5 technology
- Support various colors of ink: black, red, green, blue;
- Support Porous, semi-porous and non-porous materials.
