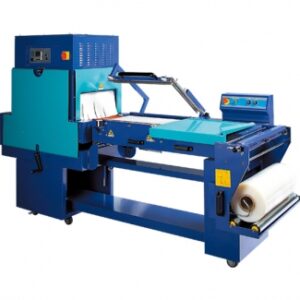

This compact L-Bar and live roller tunnel combo has a manually operated arm. The L-bar Seal bed is height adjustable and incorporates a product take-away conveyor to move the product into the tunnel after each seal. This L-Bar is also adjustable laterally so that smaller products are always centralized through the tunnel – a brilliant feature to ensure regular shrinkage.
The Tunnel is also independently height adjustable so that unstable products, or printed reams are not displaced upon transition between L-Bar and Tunnel. The whole unit includes a cool down timer that you switch off upon completion of work for the day, and after 15 minutes the unit turns itself off, ready to be turned on the next time required.
POWER SUPPLY | 220V., 60HZ., 3-PHASE ; 400V., 50HZ., 3-PHASE |
MAX. CONSUMPTION POWER | 9Kw |
SEALING DIMENSION | 400mm (W) X 550mm (D) |
TUNNEL INLET DIMENSION | 400mm (W) X 200mm (H) |
MAX. FILM ROLL DIMENSION | 600mm X Ø300mm |
WORKING PLATE HEIGHT | 900mm |
MACHINE DIMENSION | 2570mm (L) X 870mm (W) 1600mm (H) |
MAX. PACKING HEIGHT | 150mm |
MACHINE WEIGHT | 400Kg |
